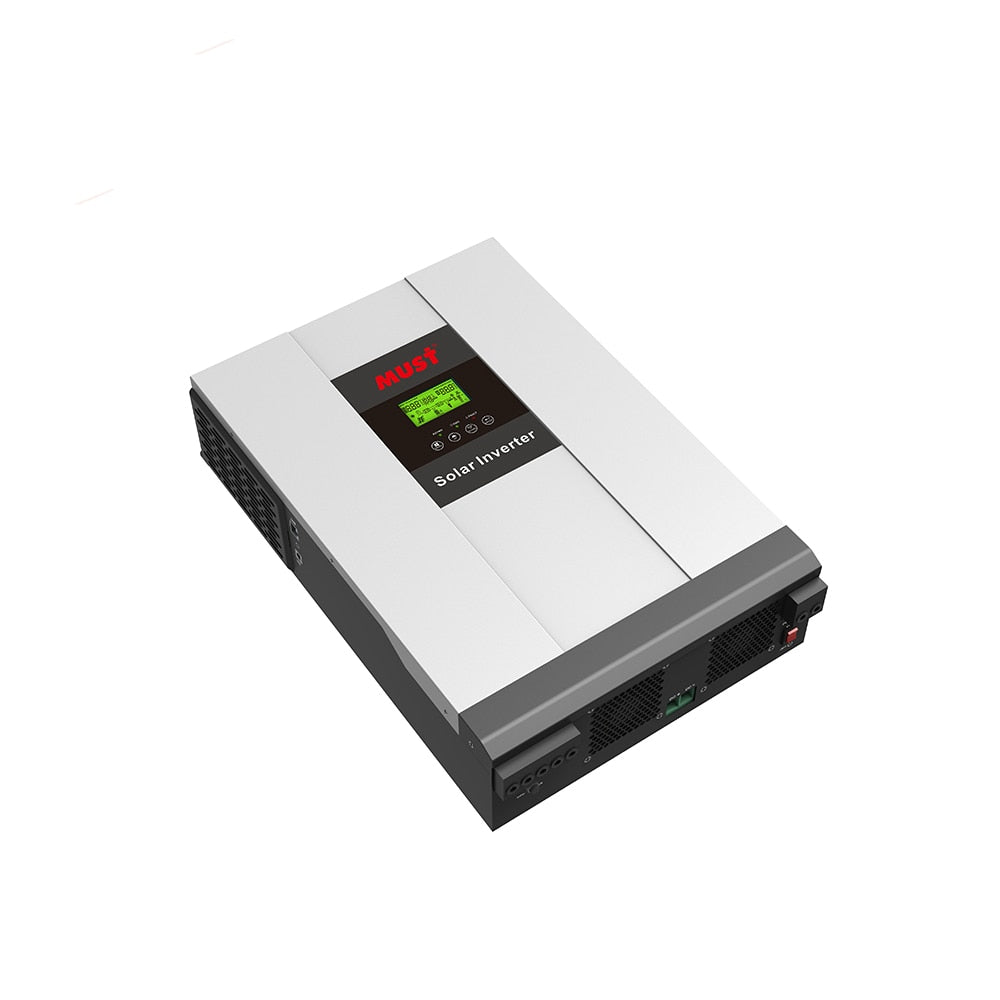

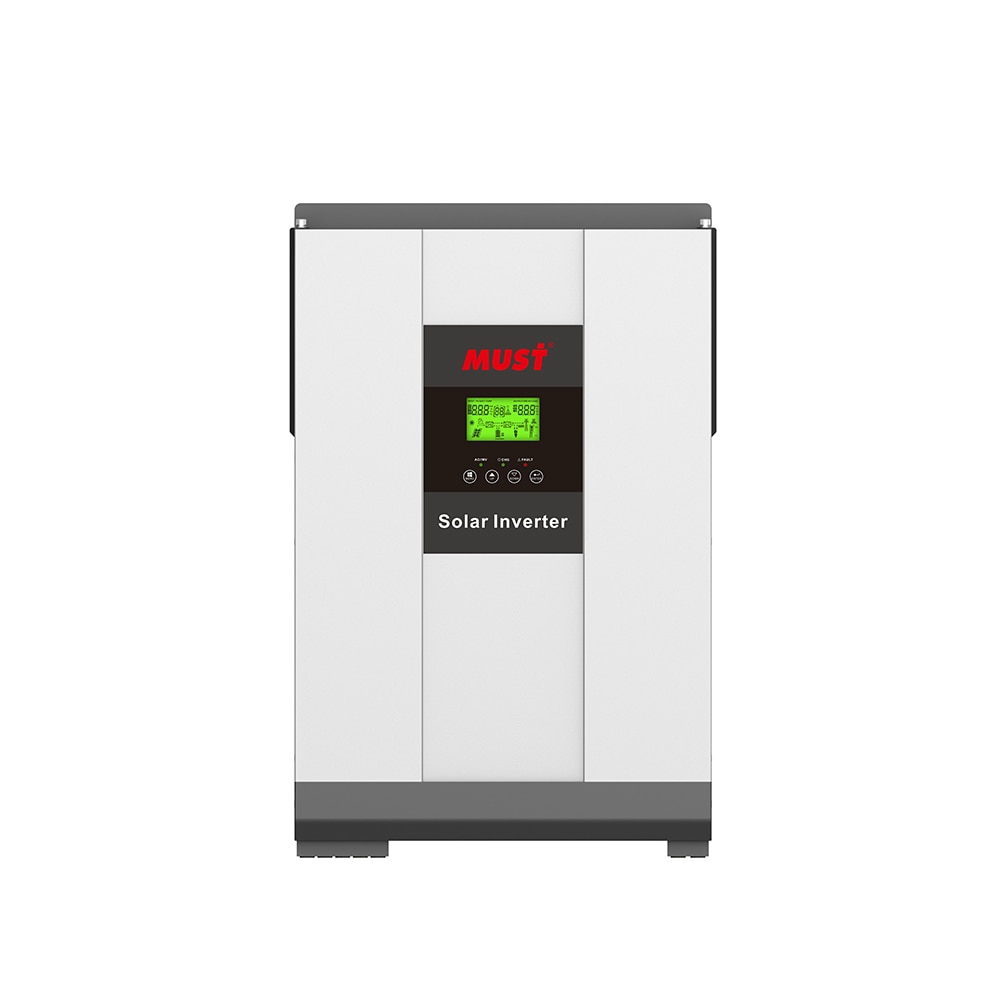

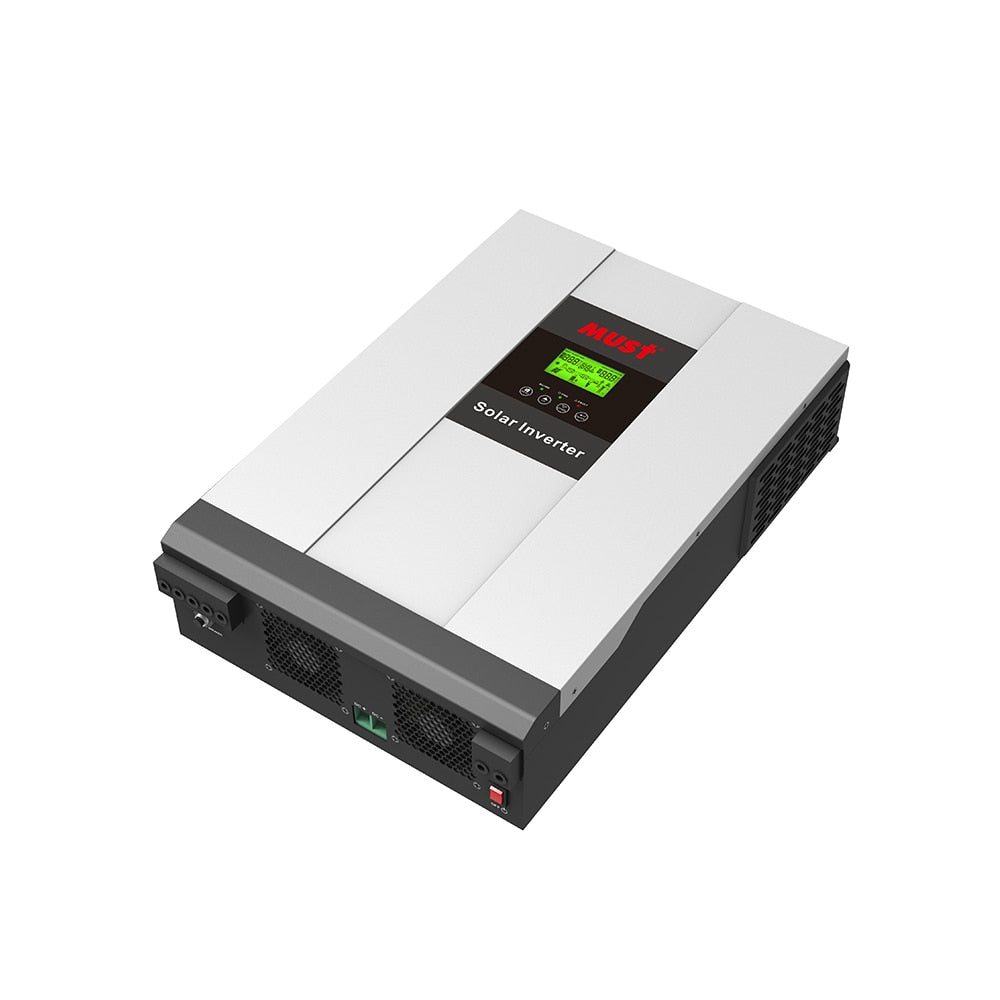

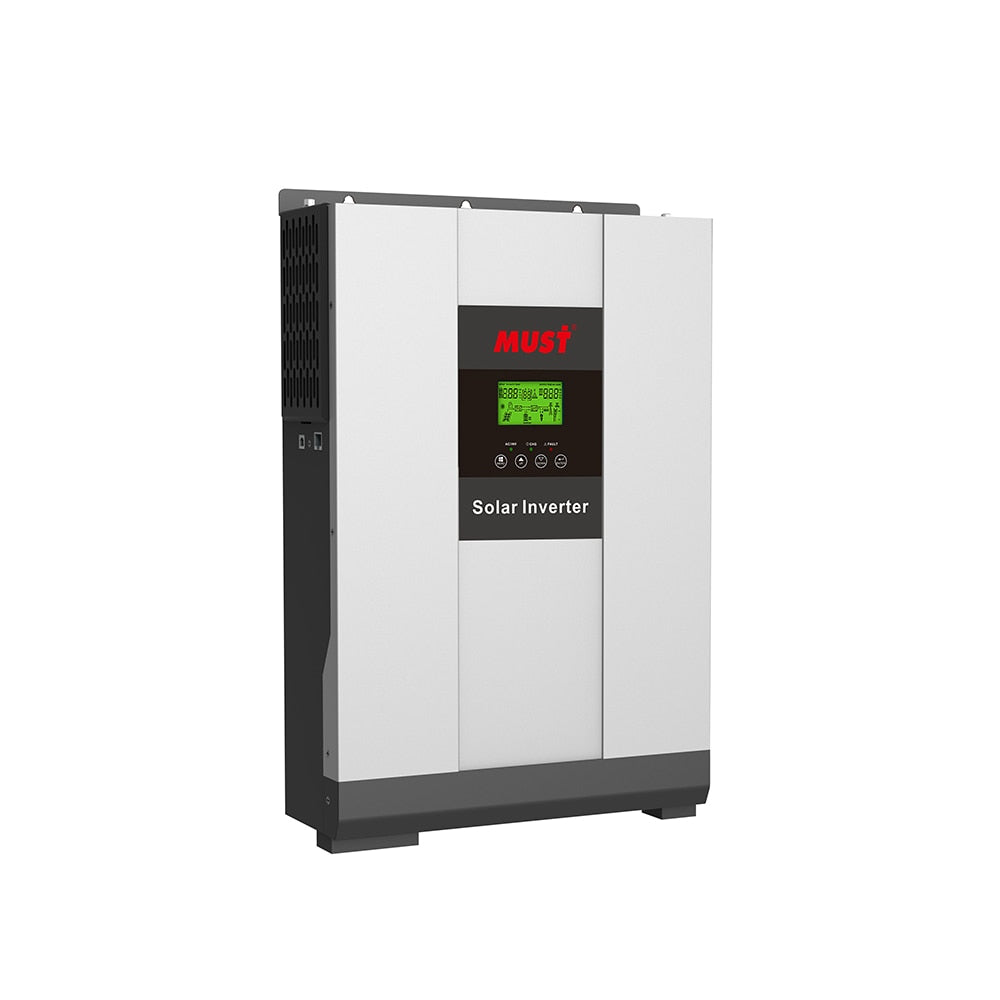

3000W/24V Solar Hybrid Power Inverter
no Wi-Fi
$4,441.14
Sale price
$4,441.14
Regular price
Skip to product information
3000W/24V Solar Hybrid Power Inverter
$4,441.14
Sale price
$4,441.14
Regular price
- Item Type: Inverter
- Output Frequency: 50/60
- Output Type: Single
- Output Power: 1 - 200KW
- 1 x Pc
| MODEL | PH18-3024 Plus | ||
| Nominal Battery System Voltage | 24VDC | ||
| INVERTER OUTPUT | Rated Power | 3000W | |
| Surge Power | 6000W | ||
| Waveform | Pure Sine Wave | ||
| AC Voltage Regulation （Batt.Mode） | 220VAC/230VAC/240VAC ± 5% | ||
| Electric Current | 13A | ||
| Output Frequency | 50Hz/60Hz Auto Sensing | ||
| THD（Linear loads） | Off grid ≤2% | ||
| Grid discharge ≤3% | |||
| Grid charge ≤3% | |||
| Inverter Efficiency（Peak） | 93% | ||
| Transfer Time | 10ms(For PC) 20ms( For Other Home Appliance) | ||
| AC INPUT | Voltage | 230VAC | |
| Selectable Voltage Range | 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105) | ||
| Frequency Range | 50Hz/60Hz Auto Sensing | ||
| BATTERY | Normal Voltage | 24VDC | |
| Floating Charge Voltage | 27.4VDC | ||
| Overcharge Protection | 30VDC | ||
| SOLAR CHARGER & AC CHARGER | Maximum PV Array Open Circuit Voltage | 145VDC | |
| PV Array MPPT Voltage Range | 30∽130VDC | ||
| Standby Power Consumption | 2W | ||
| Rated Power | 2000W | ||
| Maximum Solar Charge Current | 80A | ||
| Maximum Efficiency | 98% | ||
| Maximum AC Charge Current | 60A | ||
| Maximum Charge Current | 140A | ||
| MECHANICAL SPECIFICATIONS | Machine Dimensions (W*H*D)(mm) | 272*355*100mm | |
| Net Weight（Kg） | 7.5 | ||
| Package Dimensions(W*H*D)(mm) | 485 x 393 x 251 / 19.09 x 15.47 x 9.88 | ||
| Gross Weight（Kg） | 9.4 | ||
| OTHER | Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0 ~55 | ||
| Storage Temperature | -15 ~60 | ||
